Features

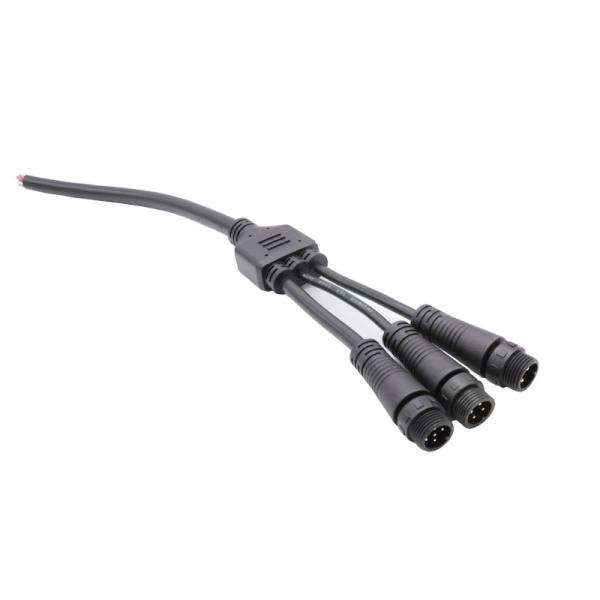

1. Y shaped waterproof connectors
2. Multicore: 2,3,4 pin available
3. Connection method: push locking
4. Dustproof cover available under off-working condition.
5. Certification: UL,RoHS,CE
6. Multi-branches are options, such as 1 to 2, 1 to 3, 1 to 4 ... 1 to 12.
Technical Spec
| Connector Model: |
Y shaped waterproof connector |
| Waterproof level: |
IP68 |
| Cable specification: |
20AWG-12AWG |
| Cable diameter range: |
4.5mm-12mm(18AWG-12AWG) |
| Core number: |
2 pin,3pin,4pin |
| Rated current (A): |
10A |
| Service |
Cable length could be customized |
Product Benefits :
1. Overmolded Y connector could be a nice option for your DIY connector to outdoor or indoor electrical wire extension, such as land scape LED light, led strips, wall washer bar, Audio and video, Telecommunication, Marin, factory automation control, wireless bridge and other places need waterproof power extension use, even underwater or underground both could be well used.
2.Flexiable extension to different cable length and spec, fast to install all connections.
| Operation Parameters |
| waterproof level |
ip67/ip68 |
| Current Rating |
10 A max |
| Min Wire Size OD |
3.5mm ~ 7.0mm |
| Max Wire Size OD |
4.0mm2 ~ 9.5mm |
| Max.Cable Cross Section Area |
0.3mm2 ~ 2.5mm2 |
Main characteristics
- Sealed against dust and fluid (IP67)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Application industries:
| Stage equipment |
The smart grid |
LED lighting |
| Medical equipment |
Battery charging |
Automation |
| Solar energy |
Ship equipment |
Agriculture |
| Electric power equipment |
Vehicles |
Ebike/motorcycle |
| Communications |
Pool lights |
Transportation |
FAQ
1. Q: Is the sample avaliable and free?
A: Yes, we can produce by your samples or technical drawings. We can build the molds andfixtures.
2. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
3. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
4. Q: How to buy your products?
You need to do as followings:
Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire guage
Confirm Cable Length and Material.
5. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once
